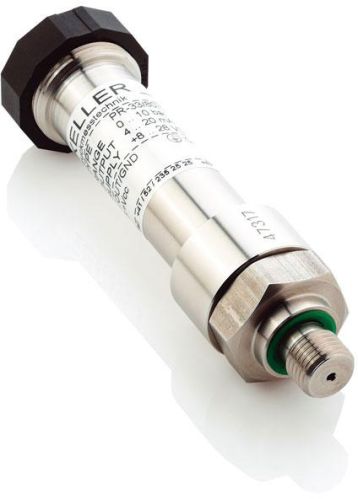

Pressure Measuring Instruments & Pressure Transmitters

Digital Output of Transmitter: This high precision of 0,01 %FS is available as an option (the standard Series 33 X has an accuracy of 0.05% FS). These Series are based on the stable, floating piezo-resistive transducer and the newly developed XEMICS micro-processor with integrated 16 bit AD converter. Temperature dependencies and non-linearity of the sensor are mathematically compensated.
Transmitter with Analog Output: Integrated in the XEMICS processor is a DA converter of 16 bit for analog signal outputs of 4…20 mA or 0…10 V. The output rate is 400 Hz. The accuracy is diminished by this converting process by 0.05% FS. The digital output is available on all transmitters with analog output.
