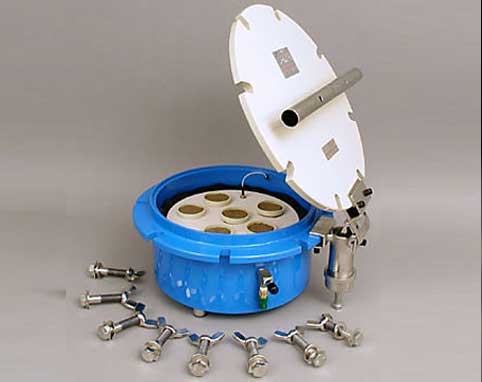

Pressure Plate Apparatus

We provide precisely designed Pressure Plate Apparatus all over India. The Pressure Plate Apparatus is imported from globally recognized manufacturers. The accurate Pressure Plate Apparatus can be availed at very reasonable prices from us.
The equipment is suitable for determination of pF-curves in the range pF2.0-4.2 (0.1-15 bar of suction). Furthermore, these are suitable for the calibration of soil moisture blocks or soil moisture measurement equipment. The standard set contains amongst others: two extractors with ceramic plates (0.1MPa, 0.3MPa and1.5MPa, resp. 1, 3 and 15bar) and accessories, soil samplerings, a pressure control panel and a compressor. Several ceramic plates with soil samples can be placed in the extract or at the same time.
The pressure control panel is standard equipped with two manometers 0-2MPa and 0-0.4 MPa (resp.0-20barand0-4bar). The included compressor (220V 50Hz) is specifically designed for this purpose: maximum pressure 2.0MPa (20bar), built-in safety precautions, completely guarded and quiet.

Pressure Plate Apparatus:

Make: Soilmoisture Equipment Corporation, USA. Model No. LAB023V2

Laboratory Setup 220V 1500F1/1600
