We are engaged in manufacturing a quality range of Inlet Pressure Regulating Valves. These inlet pressure regulating valves are widely demanded by various industries owing to their qualitative features. Further, the clients can avail inlet pressure regulating valves at affordable prices.
Â
Demanded for
Durability
Reliability
Superior performance
Precision design
Â
Available in various : Sizes
Â
Details :

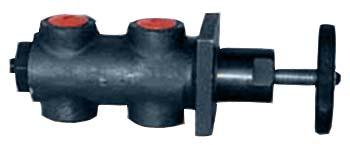

Inlet Pressure Regulating Valves are designed to control system working pressure or work as a maximum pressure regulator. It is also known as Flow control valve.
The valve is fitted with pressure adjusting screw with wheel and spring loaded plunger assembly to set the desired system pressure
By turning pressure regulating screw to the right i.e clockwise with help of wheel, the pressure will increase and by turning it to the left i.e. anticlockwise the pressure will reduce.
| Valve Model | Flow Range in LPH | Pressure Range | Piping Port Size | Pressure Gauge Port |
|---|---|---|---|---|
| IPR – 1/2” | 90 to 600 | UPTO 30 Kg/Cm2 | ½” BSP(F) | 1/8” BSP(F) |
| IPR – 3/4” | 300 to 2000 | UPTO 30 Kg/Cm2 | ¾ “ BSP(F) | 1/8” BSP(F) |
Application : For handling liquid fuel, lubricating oil, hydraulic oil and other self lubricating and non- corrosive fluid.
Maximum permissible fluid temperature : 150° C
Note : Valves of other size and for custom made design is possible.
