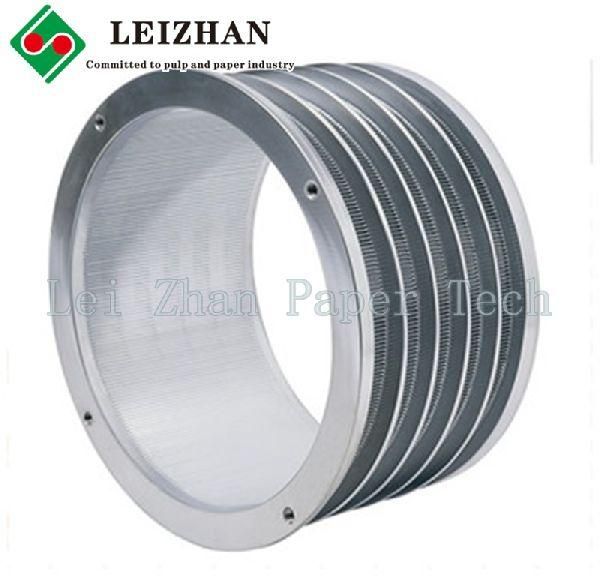

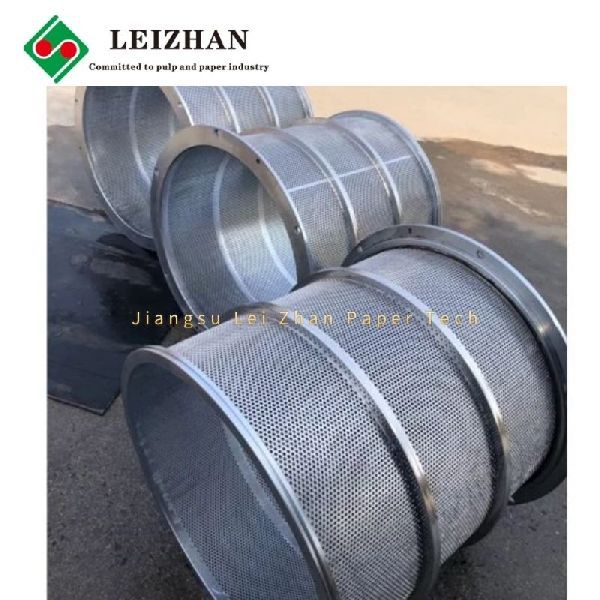

Pressure Screen Basket

product descriptionoutflow pressure screen basket is classified by the flow way of the pulp, the rotary wing spins in the basket to make the pulp flow out from the slot naturally to get good pulp with different purpose. it can be used in many links in pulp and paper line.inflow pressure screen basket is classified by the flow way of the pulp,but the inflow pressure is divided to out rotary wing and inner rotary wing. the characteristic of out rotary wing inner flow pressure screen is that the rotary wing is in the outside of screen. when it works, the heavy impurity in the pulp can be tossed outside due to centrifugal. suitable for all kinds pressure screen of pulp system:1.standard hole diameter:more than φ1.2mm   plate thickness:δ6mm-12mm2.screen slot:more than 0.1mm   plate thickness:δ6mm-12mmadvanced technology, high machining accuracy, long service lifebar coating guarantee more than 0.20 mm​technical parameters
model no.
screen area(mm)
screen hole size (mm)
screen slot size (mm)
screen hole (t/d)
screen slot (t/d)
motor power (kw)
lzsd0.3
0.3
φ1.6-φ3.5
0.1-0.55
50-80
30-50
22-55
lzsd0.6
0.6
φ1.6-φ3.5
0.1-0.55
90-160
60-100
30-75
lzsd0.9
0.9
φ1.6-φ3.5
0.1-0.55
135-250
90-150
37-90
lzsd1.2
1.2
φ1.6-φ3.5
0.1-0.55
180-320
120-190
45-110
lzsd1.5
1.5
φ1.6-φ3.5
0.1-0.55
200-380
140-230
55-132
lzsd2
2
φ1.6-φ3.5
0.1-0.55
260-500
220-300
75-160
lzsd3
3
φ1.6-φ3.5
0.1-0.55
400-700
300-450
90-220
lzsd4
4
φ1.6-φ3.5
0.1-0.55
500-1000
350-730
132-280
