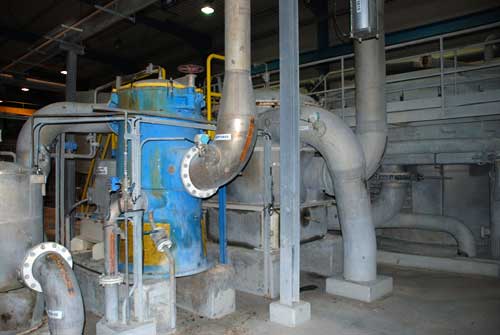

Pressure Screen

We are offering pressure screen. catering to the needs of the clients, we offer used screen to the customers. The pressure screen is procured from reliable vendors who use cutting edge technology for its manufacturing. Even though used, the pressure screen is available in excellent condition. The pressure screen is appreciated for its excellent performance and long service life. why our pressure screen?

• high performance
• long service life
• easy to operate
• economical

• screening area : 3.11 m2
• consistency range : 0.2 – 1.4 %
• with above basket throughput : 12’440 l / min at 0.2% to 26’660 l / min at 1.4%.
• 5 vane stainless steel rotor
• centripetal flow design for cleaner stock (dirt and grit particles not forced through basket) also long life for basket & rotor due to minimal abrasive wear
• fitted basket has 1.6 mm perforations
• complete with pressure gauges to inlet & outlet
• inlet & outlet flanges 400 mm np10 heavy reject outlet flange 150 mm np10 light rejects outlet flange 1” bsp
