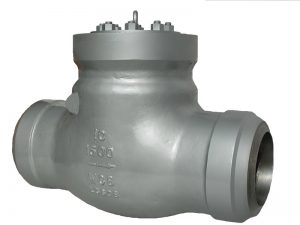

    Pressure Seal Swing Check Valve

    Pressure Seal Swing Check Valve

    Get Latest Price
    • Pressure/Temperature ChartASME B16.34
    • MaterialsWCB / LCB / LCC / CF8M / CF8 / CF3M / 4A / 6A / Inconel
    • Flange DetailsASME B16.5 UP TO 24”
    • Face to face DimensionASME B16.10
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Camtech Manufacturing FZCO
    location dubai
    View Number
    • calendar Member Since 17 Years
    • building Nature of Business Supplier

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Flange DetailsASME B16.5 UP TO 24”
    • MaterialsWCB / LCB / LCC / CF8M / CF8 / CF3M / 4A / 6A / Inconel
    • TrimsF6a / F316 / F304 / F316L / F51 / F55 / Inconel / Stellied or Hardfaced
    • ASME Class150 -1500
    • Size Range2” – 24” (DN50 – DN600)
    • Testing StandardEN 12266-1 / API 598
    • Butt-Weld End DetailsASME B16.25
    • EndsFlanged ends, Butt-weld end
    • Design StandardASME B16.34 / BS 1868
    • Face to face DimensionASME B16.10
    • Pressure/Temperature ChartASME B16.34

    • Cast body precisely machined with integral flanges.
    • Precisely machined Swivel disc as standard which provides superior tightness.
    • No penetration of hinge pin to outside eliminating possibility of pin seal leakage and allowing for in-line service.
    • Easy in-line service. All parts are easily accessible for maintenance. Seating faces can be re-lapped.
    • Hinge is pivoted to the hinge pin inside the body
    • Disc nut secures the disc to the hinge. It allows the disc to rotate about its axis and assist in tight shut off.
    • Longer Seat rings are designed for higher temperature and higher pressure.
    • Nace service either MR-01-75 or MR-01-03 as required.
