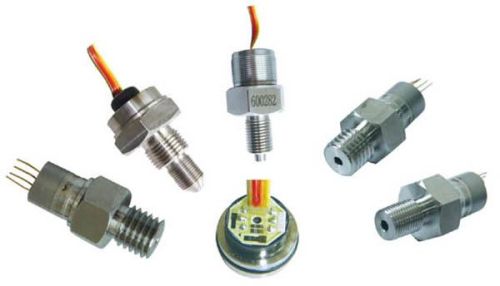

Pressure Sensors

We are offering pressure sensors (with wlded housing).
high precision pressure transducer, aslo have flush diaphragm structure.
measuring ranges from 0-0.035 - 100mpa
piezoresistive diffusion silicon pressure sensor
excellent accuracy and long term stability
316l package assemble conveniently
the senor can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system design.
specification
01.nominal range: 35kpa, 100kpa, 250kpa, 600kpa, 1mpa, 1.6mpa, 2.5mpa, 4mpa, 6mpa, 10mpa, 25mpa, 40 mpa, 60mpa
02.pressure reference: gauge, sealed guage, absolute
03.overload: 1.5 - 2 times nominal scale
03.zero offset: ± 2mv
04.full scale output: > =50mv(35kpa is >=30mv)
05.accuracy: ± 0.25%f. S ± 0.5%f. S
06.long term stability: ± 0.2%f. S/year
07.excitation: 1madc (5vdc and 10vdc available)
08.insulation resistance: > 100m� (250vdc)
09.bridge resistance: 3k� -6k�
10.electrical connection: 4 wires (5 wires available)
11.operating temperature: -40 - 100º c
12.compensated temperature: 0 - 70º c; -30 - 100º c
13.thermal sensitivity coefficient: � ± 0.02%f. S/º c
14.thermal zero coefficient: � ± 0.02%f. S/º c
15.process connection: all-welded structure
16.process medium: gas and liquid
17.materials wetted by process: stainless 316l standard
18.fill fluid: silicon oil.
