Series FDT Flush Diaphragm Transmitter, For Industrial Use, Certification : Yas

₹ 4,500 / Piece

Material316 & 15-5 SST.
CertificationYas
ApplicationIndustrial Use, Or Where A Pressure Ca
FeatureHigh Performance
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader, Buying House
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 15 Years
Nature of Business Supplier
GST No. 07AOSPS8386M1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerPressure Transmitter
Material316 & 15-5 SST.
CertificationYas
Availability2 Oz (57 G).
ApplicationIndustrial Use, Or Where A Pressure Ca
FeatureHigh Performance
Temperature-40 To 200°F (-40 To 93°C).

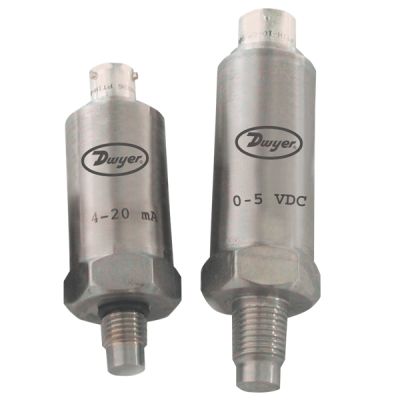

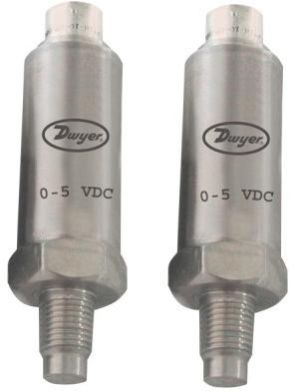

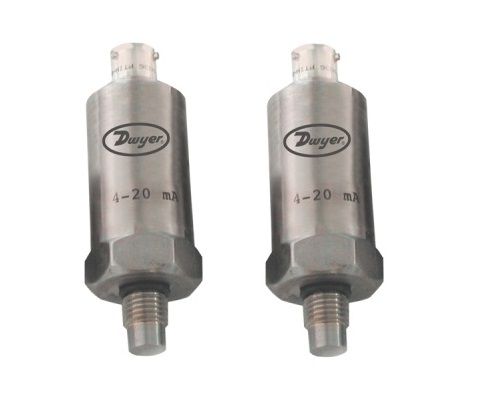

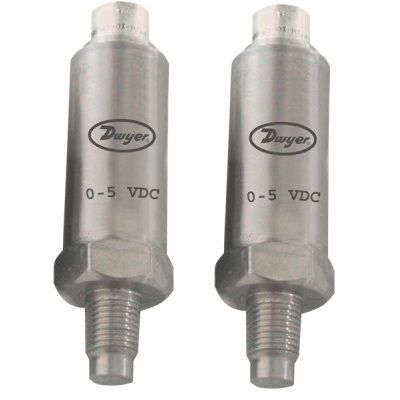

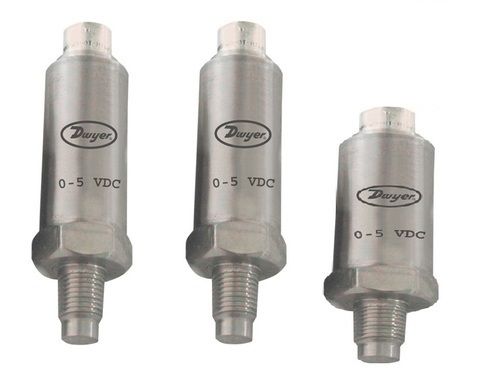

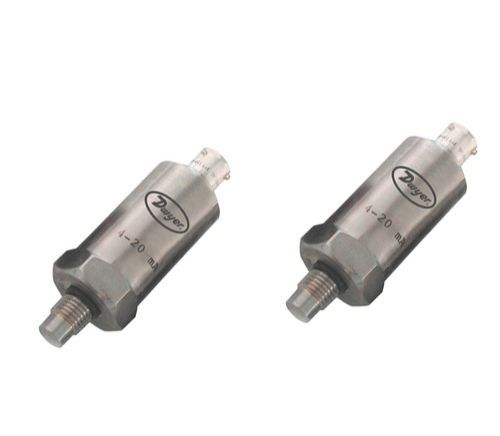

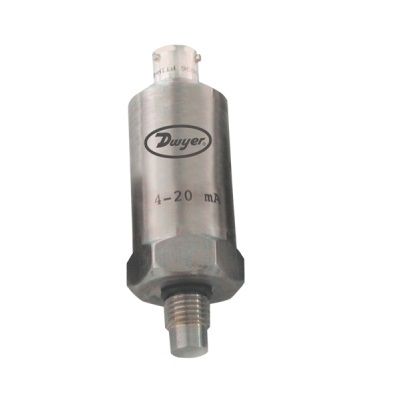

Series FDT Flush Diaphragm Transmitter

Non-liquid Filled, ±0.5% F.S.O. Accuracy, SS Wetted Parts

The Series FDT Flush Diaphragm Transmitter is designed for highly cyclical conditions. Flush sensor feature prevents any potential inaccuracies due to build-up or blockage which is a typical problem found in most non-flush transmitter sensors.

Product Applications

OEM
Hydraulic systems
Process systems

Specifications

Service:Compatible liquids and gases, adhesives, slurries, materials that can harden, or where a pressure cavity is not desired.
Wetted Materials:316 & 15-5 SST.
Accuracy:±0.5% FS (includes non-linearity, hysteresis, and repeatability).
Stability:±0.25% FS per year.
Temperature Limits:-40 to 200°F (-40 to 93°C).
Compensated Temperature Limits:0 to 170°F (-18 to 77°C).
Pressure Limit:150% FS; Burst: 200% FS.
Thermal Effect:±1.5% FSO over compensated range.
Power Requirements:8-38 VDC.
Output Signal:FDT-A: 4-20 mADC; FDT-V: 0-5 VDC.
Response Time:
