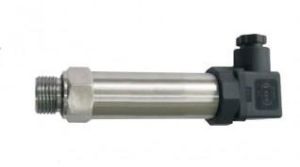

Pressure Temperature Transmitter MRQ22

High-Temperature Media (-40°C up to 125°C) , Pressure Measurement Range of -1 to 1000bar , Separate Output for Pressure and Temperature, Compact and Rugged Model Wide Range of Media Compatibility, Low Static and Thermal Errors , Reverse polarity and transient current protected
Pressure Temperature Transmitter MRQ22 Characteristics:
Technology Piezo resistive
Type Pressure Transmitter
Standard Measurement Range (bar) [-1/0], 10, 25, 50, 100, 200, 400, 800, 1000
Purpose and Application High Temperature, Pressure – Temperature, High Pressure Range
Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
Output Signal 4-20mA, 0-5VDC, 1-5VDC
