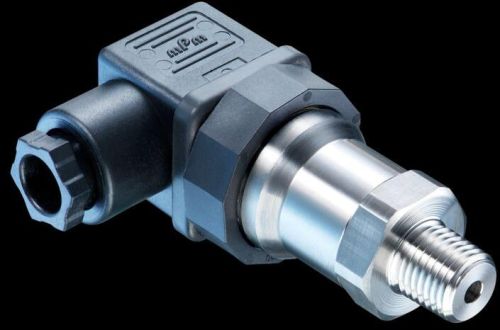

Pressure Transmitter, Model Number : CTX

Model NumberCTX
ApplicationPressure sensor for general air and gas applications
Temperature coefficient ≤ 0.15 % FSR/10 K , measuring span ≤ 0.25 % FSR/10 K , zero point
Max. measuring span 200 bar
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location India only

Product Details

ApplicationPressure sensor for general air and gas applications
Model NumberCTX
Min. measuring span 1.0 bar
Rise time (10 ... 90 %) ≤ 5 ms
Measuring range -1 … 200 bar
Compensated temperature range -10 … 55 °C
Temperature coefficient ≤ 0.15 % FSR/10 K , measuring span ≤ 0.25 % FSR/10 K , zero point
Long term stability ≤ 0.3 % FSR/a
Pressure type Relative (gauged)
Max. measuring error ± 2.5 % FSR -Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
Standard error of measurement (BFSL) ± 0.5 % FSR -Including non-linearity, hysteresis and non-repeatability according BFSL
Max. measuring span 200 bar
