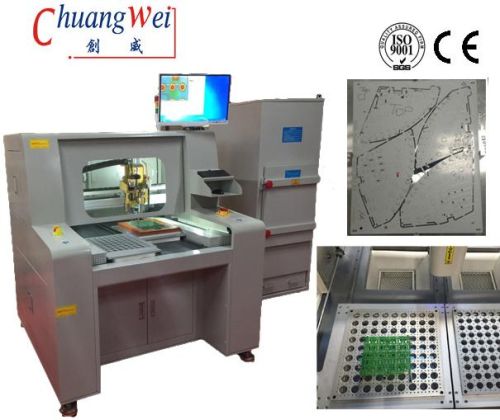

Printed Circuit Board Router Machine, Brand Name : Chuangwei

More info please copy the website and click it(www.pcb-soldering.com)
printed circuit board router machine - cnc routing pcb equipment,cw-f04
the best sulotion for pcb depaneling
1. Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate
2. Avoids the stress produced mechanically by using punch or bending
3. Suitable for cutting of a circle, arc and line of a finished plate
rotational speeds adjustable
1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance
2. The high-speed spindle uses air radiation to reduce volume
3. The head of the main shaft is suitable for the milling cutter specially designed for a pcb
4. The rotational speeds of the main shaft can be adjusted from 2k-60k rpm according to the thickness of pcb
the screen is friendly and can be switches between chinese and english
1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation
2. The function selection, manual function selection and instruction for shift are selected by mouse
3. Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.
Value matching is accurate and instruction is conveniently
1. During instructing, there are three kinds of speed optional
2. Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set.
