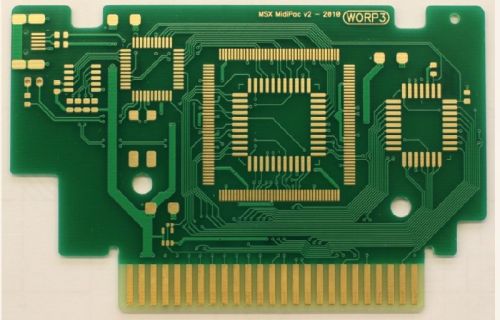

Printed Circuit Boards Fabrication

Automotive electronic application pcb electronic boards manufacturing fabrication: multilayer pcbmultilayer pcb is a circuit board that has more than two layers.unlike a double-sided pcb which only has two conductive layers of material, all multilayer pcbs must have at least three layers of conductive material which are buried in the center of the material. how are multilayer pcbs made?alternating layers of prepeg and core materials are laminated together under high temperature and pressure to produce multilayer pcbs. This process ensures that air isn't trapped between layers, conductors are completely encapsulated by resin, and the adhesive that holds the layers together are properly melted and cured. The range of material combinations is extensive from basic epoxy glass to exotic ceramic or teflon materials. the figure above  illustrates the stackup of a 4-layer multilayer pcb.  prepeg and core are essentially the same material, but prepeg is not fully cured, making it more malleable than the core.the alternating layers are then placed into a lamination press. Extremely high temperatures and pressures are applied to the stackup, causing the prepeg to "melt" and join the layers together. After cooling off, the end result is a very hard and solid multilayer board.  benefits of multilayer pcbs (compared to single or double-sided pcbs)? higher assembly density ? smaller size (considerable savings on space)? increased flexibility?
