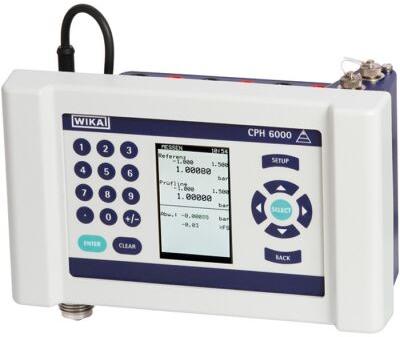

Process Calibrator

Handling: For a solution that always matches the application, there are many pressure sensors to choose from, with accuracies of up to 0.025 ‰ and measuring ranges up to 6,000 bar, which can be interchanged quickly and without tools.

In addition to being fixed to the instrument, the pressure sensor can, optionally, be used externally via an approx. 1 m long connecting cable.

If the pressure sensor on the instrument is changed, then the digital instrument will recognise the new measuring range and thus saves the operator from having to configure it via the menu.

Functionality: In the Setup menu there are 3 operating modes to choose from: MEASURING, CALIBRATION and PRESSURE SWITCHTEST.

In the CALIBRATION and PRESSURE SWITCH-TEST modes a menu assistant supports the user during each operation and records, for example, the calibration data from several calibrations or automatically evaluates the switch hysteresis.

To power the test item and to read their measurement signals there are electrical inputs and outputs, which are protected from adverse conditions in the field by captive protective caps.

Software: For the evaluation and documentation of the calibration data stored in the CPH6000 there are 2 PC programs available.

Using the PrintCal software (based on Excel®) the data is automatically transferred into a printable calibration certificate.

The EasyCal calibration software also offers, over and above PC-supported calibration, the management of the calibration and instrument data in an Access database. For data transfer, an RS-232 and a USB interface are available.

Complete test and service cases: For maintenance and service applications, various service cases are available. These include pressure service cases with or without pressure generation, charger, adapter, etc.

Certified accuracy: For each reference pressure transmitter, the accuracy is certified by a factory calibration certificate which accompanies the instrument.

On request, we are also pleased to provide a DKD/DAkkS calibration certificate for the instrument from our own DKD/DAkkS laboratory.
