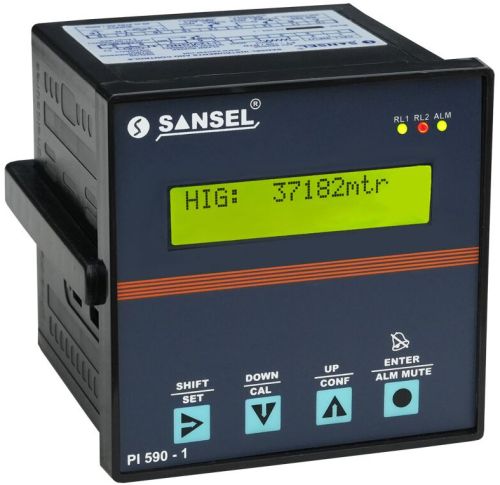

SANSEL Process Indicator PI 590-1, Color : Black

Brand NameSANSEL
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Model : PI 590-1 Display: 16 character x 2 line LCD Input: -75 to +75mV / 0 to +20mA / -10 to + 10V ( programmable Input Lo & Hi Limits) Range: -199999 to +199999 (programmable Range Lo & Hi....

View More Details

Send Enquiry

Company Information

Sansel Instruments And Controls

Maduravoyal, Chennai, Tamil Nadu

4.6/5

(30)

View Number

Member Since 17 Years
Nature of Business Exporter
GST No. 33APGPS4066M1ZG
Company Video

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model : PI 590-1
Display: 16 character x 2 line LCD
Input: -75 to +75mV / 0 to +20mA / -10 to + 10V ( programmable Input Lo & Hi Limits)
Range: -199999 to +199999 (programmable Range Lo & Hi Limits)
Resolution: 0.00001 / 0.0001 / 0.001 / 0.01 / 0.1 / 1 (selectable)
Accuracy : ± 0.1% of FS / ± 0.05 % of FS
Sensor Supply Working : 24 V DC / 100 mA
Relay Output (Optional): 2 NO , 2 COM 5 A Rated Relay with individual H / L set
Re transmission Output (Optional) : 4 - 20 mA (or) 0 - 10V DC (Factory Selectable)
Working temperature : 0 - 50 ºC
Power Supply : 90 to 270V AC / DC 50Hz
Dimension : 96 x 96 x 65 mm.
Weight : 200 grams (Approx.)
