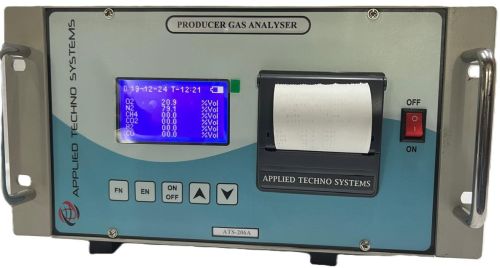

Producer Gas Analyzer With Printer Model ATS 204A

Producer gas analyzer Model ATS 204A is portable type instrument  used to determine the composition of producer gas, which is generated through the gasification of various carbonaceous materials like biomass or coal
The primary function is to measure the concentrations of key gases within the producer gas, including:

• Carbon monoxide (CO)
• Carbon dioxide (CO2)
• Hydrogen (H2)
• Methane (CH4)
• Oxygen (O2)
• Nitrogen (N2)
• Applications:
  • Biomass Gasification:
    • Monitoring the gas quality from biomass gasifiers for heat and power generation.
  • Coal Gasification:
    • Analyzing the producer gas from coal gasification plants.
  • Industrial Processes:
    • Used in various industrial applications where producer gas is utilized as a fuel or feedstock.
• Specification-:
• NDIR Sensor for CO,CO2 & CH4 Range 0-100% V/V
• TCD Sensor for Hydrogen (H2)   Range 0-100% V/V
• Electro Chemical Sensor for Oxygen Range 0-100% V/V
• Sampling Through inbuilt Auto Suction Pump.
• Accuracy : +/- 1%
• Responce time : < 5 Sec.
• LCD Graphics Display
