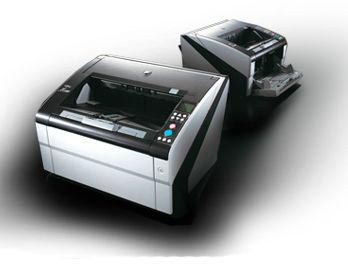

Contact SupplierWe are offering the Production Fi Series Image Scanner (fi-6800) to our nationwide customers. The offered Image Scanner incorporates many features and functions which improves the process of scanning document efficiently.
Overview :
Features :
| Model | fi-6800 | ||
|---|---|---|---|
| Functional Specifications | |||
| Image Sensor Type | Color CCD (Charge-coupled device) x 2 (front x 1, back x 1) | ||
| Output Resolution | Color (24-bit), Grayscale (8-bit), Monochrome (1-bit)(5)) | 50 to 600 dpi, 1200 dpi (11)(12) | |
| Halftone Patterns | 4 Dither Patterns and error diffusion | ||
| Grayscale | 10-bit/1,024 level (internal), 8-bit/256 level (output) | ||
| Color | 24-bit single pass color | ||
| Scanning speeds (200 or 300 dpi, Letter, Color, Grayscale and Monochrome)(3) | |||
| Output | Simplex | Duplex | |
| Portrait(1) | 100 ppm(2) Color/Greyscale | 200 ppm(2) Color/Greyscale | |
| Landscape(1) | 130 ppm(2) | 260 ppm(2) | |
| Scanning Mode | Simplex and Duplex | ||
| Document Feeding Mode | Automatic document feeder (ADF) | ||
| ADF Capacity(4) | 500 Sheets (A4: 80 g/¡ or 20 lb.) | ||
| Daily Duty Cycle | 60,000 Pages | ||
| Document Size | ADF Minimum | A8 Portrait (52 mm x 74 mm or 2 in. x 3 in.) | |
| ADF Maximum | A3 Portrait (297 mm x 420 mm or 11.7 in. x 16.5 in.), Double letter (279.4 mm x 431.8 mm or 11 in. x 17 in.) | ||
| Interface(6)(7) | Ultra Wide SCSI, USB2.0/USB1.1(Selectable) | ||
| JPEG Compression | Hardware real time JPEG compression available | ||
| Physical Specifications | |||
| Power Requirements (auto-switching) | 100 to 240 VAC, 50/60 Hz | ||
| Power Consumption | 200 W or less | ||
| Operating Environment | Temperature | 15 ° C to 35 ° C (59 ° F to 95 ° F) | |
| Relative Humidity | 20 % to 80 % (non-condensing) Not operating: 8 % to 95 % | ||
| Dimensions (HxWxD)(8) | 460 mm x 430 mm x 310 mm (18.1 in. x 16.9 in. x 12.2 in.) | ||
| Weight | 32 kg (70.5 lb) | ||
| Inbox Contents | AC cable, USB cable, Setup DVD-ROM, 2D Barcode for PaperStream Setup CD-ROM | ||
| Bundled Software (DVD format) | PaperStream IP (TWAIN/ISIS) Driver, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, PaperStream Capture, Scanner Central Admin Agent | ||
| Environment Compatibility(9) | ENERGY STAR®, RoHS, EPEAT Silver | ||
| Options | Post Imprinter (Front-side) and Post Imprinter (Back-side), VRS Option | ||
| OS Support | Windows® 10 (32-bit/64-bit), Windows® 8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), | ||
| Features | Ultrasonic Intelligent MultiFeed Function Double Feed Detection (3x) and Long Document Scanning(10) | ||
| Part Number | Description | |
|---|---|---|
| fi-6800 Consumables | ||
| Pick Roller | PA03575-K011 | Lifetime: Every 600,000 sheets or one year. These rollers feed documents into the scanner. |
| Separator Roller | PA03575-K012 | Lifetime: Every 600,000 sheets or one year These rollers feed documents through the scanner. |
| Brake Roller | PA03575-K013 | Lifetime: Every 600,000 sheets or one year. These rollers separate documents as they are being fed into the scanner. |
| Print Cartridge | CA00050-0262 | Lifetime: 4,000,000 printed characters. (FI-680PRF / FI-680PRB print head) |
| fi-6800 Options | ||
| Post-Imprinter (FI-680PRF) | PA03575-D201 | Post-scan Imprinter / Front-side printing on document with on-site installation |
| Post-Imprinter (FI-680PRB) | PA03575-D203 | Post-scan Imprinter / Back-side printing on document with on-site installation |
