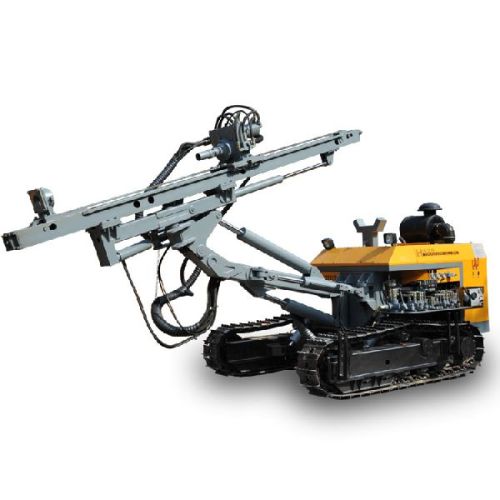

Professional Hongwuhuan H430 Rock Drilling Rig

Professional hongwuhuan h430 rock drilling rigs are  hydraulic driven rock drilling equipment.in addition to the impactors using aerodynamic force, the rest of the power for professional rock drilling rigs is provided by the hydraulic station.high precision air filter with double level ultra large flow ensures the intake safety of the engine for h430 rock drilling rig. H430 series technical parameters                                                                                                                                modelparameters hc430 adaptability to rock hardness   6~20 borehole diameter mm 90~165 borehole depth mm 30 standalone climbing ability ° 30 propelling way cylinder chain propulsion propelling stroke m 3120 max. Lifting force kn 35 rotary torque n.m 4500 rotary speed r/min 0~120 working air pressure mpa 1~2.4 air consumption m3/min 14~35 diesel power kw 66 horizontal swing angle of drill arm ° left 45 right 45 walking speed km/h 2.5 ground clearance mm 400 dimensions mm 6100*2250*2500 whole weight kg 6000.
