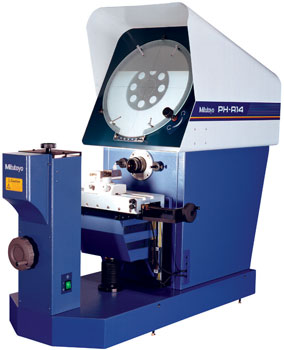

Profile Projector

Series 172
FEATURES
Bench-top model that uses horizontal optical system.
Suitable for thread pitch measurements-blurred or distorted images will not be produced when workpiece is angled.
Inverted image on the day bright screen.
14”(356) diameter vernier protractor screen with solid line cross-hairs for easy alignment.
Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement.
Optional Accessories
172-012: 20x projection lens
172-013: 50x projection lens set
172-014: 100x projection lens set
172-116: Standard scale (50mm)
172-117: Standard scale (2”)
172-118: Reading scale (200mm)
172-161: Reading scale (300mm)
172-119: Reading scale (8”)
172-162: Reading scale (12”)
172-286: Green filter
512305: Halogen bulb (24V,150W) (standard accessory)
64AAA129B:Machine stand
Fixture and Stage accessories
172-142: Center support
172-143: Center support riser
172-144: Rotary vise (Max. workpiece dia 2.460mm)
172-234: V-block with clamp (Max workpiece dia 2”50mm)
172-132: Vertical holder
.
QM-Data200
264-155A: Stand mount type
264-156A: Arm mount type 2-D data processing unit.
332-151:OptoeyeEdge detection system for QM-Data 200
12AAE671:Detector Attachment B
Standard Accessories
172-011 Projection Lens 10x
512305 Halogen bulb 24V 150W (500 Hours)
358191 Fuse 6A (for 10-120V)
538815 Hexagonal wrench 2.5
538616 Hexagonal wrench 3
12BAC245 Spanner wrench 2.5 1
99MBA051A Operational manual
