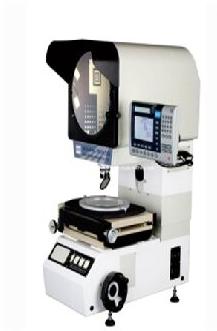

Profile Projector

LABBYSCOPES Profile Projector (NBMS-300) :

Having300mm dia 360 degree rotatable graduated

screen with vernier and 90 degree cross hair line for

angle measurement, With X-Y movement on ball

bearing slides travel up to 25 X

25 mm with Micrometer heads (50mm dia) least

count of 0.005mm for length, width & depth

measurement, providing different magnification

ranges from 10x to 100x,Having both contour

(12V/100W) lamp and two surface (6v/20W)lamps,

with 4 following objective lenses in card board box:

Standard Features:

Travel X-Y movement (Standard) :50x50mm

Travel Z (Up and Down) :15mm(Under 10x)

Travel Z (Up and Down) :50mm(Under 20x,50x

&100x)

Micrometers (50mm Dia) :25mm (L.C 0.005)

X-Y Bed Size :150mm X 150mm

Standard Magnification :10x
