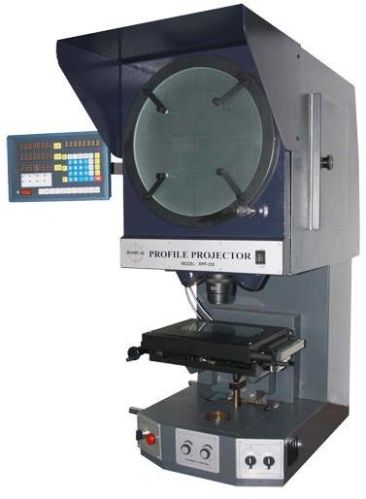

Profile Projector

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Standard Features: Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique....

View More Details

Send Enquiry

Company Information

P. Patel Tools & Bearings Co

Shapar, Rajkot, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Standard Features:

Compact light weight Table Top with easy operations. 360mm dia. screen with 90° cross line & chart holders. Projection Light Source with 24V/150W Halogen Lamp. Double Oblique Light Source for Surface Illumination Double Oblique Light source for Surface Illumination throught 10 watt LED bulbs. Motorised Focussing with 60mm focusing range. High Quality objective lenses. Optical distortion below 0.15%.

Standard magnification : 10x, Optional : 10x, 20x, 50x and 100x. High Quality European made objective lenses, Optical distortion below 0.1%. Optional Work Tables for Micrometer Heads & for linear scales with Digital Readout. Cooling by built-in noiseless and vibration free fan. Available in 110V & 220V through low voltage transformers.

PROJECTION CAPACITY

	Contour Illumination				Surface Illumination
Magnification	10x	20x	50x	100x	10x	20x	50x	100x
View Field Diameter	36	18	7.2	3.6	36	18	7.2	3.6
Working Distance	115	95	46	35	115	95	46	35

MODEL NO. & SPECIFICATIONS

Model No.	RPP-350	RPP-350DM	RPP-350DR
X-Y Range	75x75mm with the use of gauge blocks)	75x75mm with the use of gauge blocks)	200x100mm (with the use of gauge blocks)
Effective Table Area	125x125mm	125x125mm	275x180mm
Measuring Unit	Micrometer Heads	Digital Micrometer Heads	Built in Linear Scales
Resolution	0.01mm	0.01mm	0.001mm/ 0.00005"
X-Y Counter	No	No	Yes
Angle Counter	Optional	Optional	No
Optical Edge Detector	No	No	No
Rotary Measuring Stage	Yes	Yes	Optional
Table Size	150x150mm	150x150mm	310x250mm
Maximum Workpiece height	116mm	116mm	110mm
RPP-Software	No	No	No
Dimensions/Weight	50x84x104cm/150 Kgs.

Model No.	RPP-350DRA	RPP-350DRS	RPP-350DP
X-Y Range	200x100mm	200x100mm	200x100mm
Effective Table Area	275x180mm	275x180mm	275x180mm
Measuring Unit	Built in Linear Scales	Built in Linear Scales	Built in Linear Scales
Resolution	0.001mm/ 0.00005"	0.001mm/ 0.00005"	0.001mm/ 0.00005"
X-Y Counter	Yes	Yes	Yes
Angle Counter	Yes	Yes	Yes
Optical Edge Detector	No	No	Yes
Rotary Measuring Stage	Optional	Optional	Optional
Table Size	310x250mm	310x250mm	310x250mm
Maximum Workpiece height	110mm	110mm	110mm
RPP-Software	No	Yes	No
Dimensions/Weight	50x84x104cm/150 Kgs.
