Profile Projector

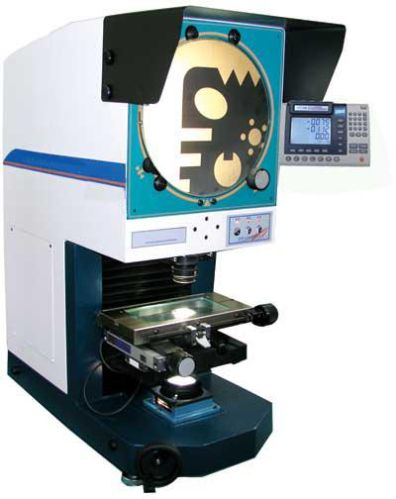

We are offering sp-24 φ300 horizontal profile projector.
features:
with beautiful appearance and high precision, this instrument can compete with similar instruments abroad. Casting aluminum is selected for the processing of worktables, light in weight;
with high-quality optical system, the objectives have clear image and accurate magnification. The fiber transmission is adopted for the reflecting illuminating, which is small in dimensions, high in brightness and convenient for uses; the two high-and-low adjustable illumination intensities for transmission illuminating can be adaptable for measuring requirements of different work-pieces;
technical parameters:
model
sp-24
projection screen:
φ300 mm
rotation range:
360°
objective magnification power
10x 20x 50x 100x
object visual field
φ30mm φ15mm φ6mm φ3mm
object working distance
75 mm 70 mm 27 mm 26mm
range of x-coordinate (mm)
200mm
range of y-coordinate (mm)
80mm
resolution:
0.001 (mm)
load capacity of the worktable (kg)
5kg
worktable area (mm)
326x150mm
stroke of z-coordinate (focusing):
0~100 (mm)
accuracy of the instrument:
(3+l/75)μm,
transmission lighting:
24v 150w halogen tungsten lamp
reflecting lighting:
24v 150w halogen tungsten lamp
overall sizes of the instrument (mm):
726×420×980
weight:
105 kg
