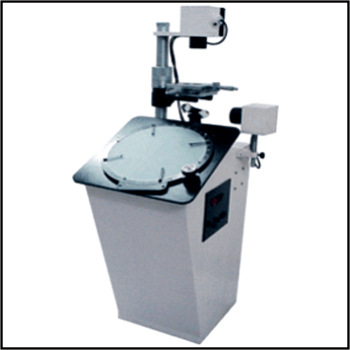

Profile Projector Rpp-33

We offer Profile Projector.
Specification:-
Screen Antiglare hard glass screen, graduated & rotatable through 360odegree having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings.
Mirrors Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination Contour Illumination is provided with a 24V150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer.
EPI-Illumination A Specially designed 12V100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.
Electrical Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size 350mm
Lenses 10x Objective (Standard)
Work Stage
Over all Size 150mm x 150mm
Cross Movement 50mm x 50mm (without measuring units)
Measurement By Standard micrometer heads 0-25mm
Least count 0.01mm
Supplied complete as above, with standard multilayer coated objective, spare bulb, a vinyl cover and operating instructions manual.
Optional Accessories
Objectives 20x and 50x, V-Block with clamp, Swivel Center Support Holder, Digital Readout System, Digital Protractor, Work Stage, Calibrated Glass Scales, Standard Overlay Charts etc.
