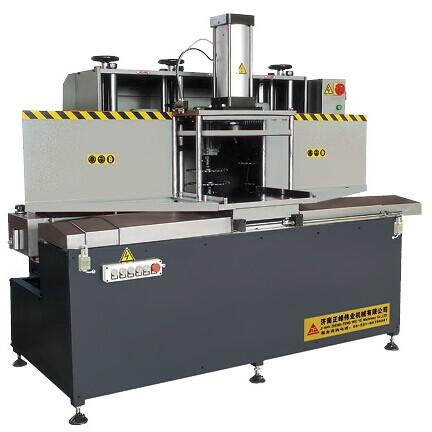

Profile Tenon Milling Equipment For Aluminum PVC Window Making Machine

₹ 5.43 Lakh / 7000 7000 Piece

MOQ1 Piece(s)
Brand NameZhengfeng
ConditionNew
Country of OriginChina
Air pressure0.5-0.8mpa
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameZhengfeng
ConditionNew
Country of OriginChina
Air pressure0.5-0.8mpa
Model NumberXSJ01
Motor power13.2kw
Adjustment milling cuttersTransverse 80MM Longitude 280MM
Overall dimension2070*1130*1820mm
After-sales Service ProvidedYes
Feeding space1570mm
Power supply380V/50HZ
Main shaft diameterØ32mm
Warranty1 year
Feeding motor0.37kw
Motor rotary speed2800r/min
Workingtable measurement480*480mm

Main Features
1.Used for processing various profile surface and step surface etc
2.One time feeding can process the required mortise dimension of the profile surface
3.Milling any angle between 0°-180° is available
4.The six combined cutters can assemble any size according to the requirement of buyers
5.Feeding system adopts motor drag, uniform speed feeding,accurate processing and high quality
