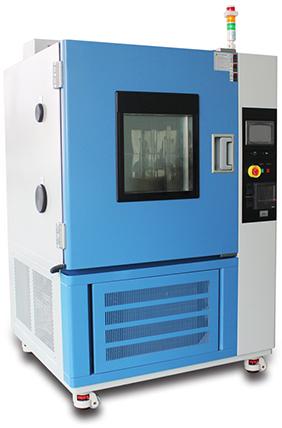

PROGRAMMABLE HIGH LOW TEMPERATURE HUMIDITY TEST CHAMBER

Temperature Fluctuation±0.5oC
Humidity Fluctuation+2% -3% R.H
Temperature RangeA: -20∼150oC, B: -40∼150oC, C: -60∼150oC, D: -70∼150oC, E : or customized
Temperature Uniformity±2.0oC
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Humidity Range20%∼98% R.H
Temperature RangeA: -20∼150oC, B: -40∼150oC, C: -60∼150oC, D: -70∼150oC, E : or customized
Temperature Fluctuation±0.5oC
Humidity Fluctuation±2%
Ramp Rate1∼3oC/min for heating, 0.7∼1.0oC/min for cooling
Humidity Fluctuation+2% -3% R.H
FeaturesProgrammable Touch Screen Controller, Running Time Meter, Wide Temperature and Humidity Ranges, Capable of Handling Extreme Temperature and Humidity, High Performance Even Under Load
Temperature Uniformity±2.0oC

Model	Volume (L)	Performance	Rated Power	Internal Dimension (mm) D x W x H	External Dimension (mm) D x W x H
LRHS-101A-LJS	101	Temperature Range(oC) A: -20∼150oC B: -40∼150oC C: -60∼150oC D: -70∼150oC Humidity Range (R.H) 20%∼98% R.H or customized	4.5kW	450 x 450 x 500	1160 x 1000 x 1610
LRHS-225A-LJS	225		5.5kW	500 x 600 x 750	1210 x 1150 x 1870
LRHS-504A-LJS	504		7.5kW	700 x 800 x 900	1260 x 1340 x 2070
LRHS-800A-LJS	800		10.0kW	800 x 1000 x 1000	1370 x 1550 x 2170
LRHS-1000A-LJS	1000		11.5kW	1000 x 1000 x 1000	1560 x 1550 x 2170
Note: In the Model, the number means volume of test chamber's working room, and ABCD means the temperature range. For example, model LRHS-101A-LJS means the volume of this test chamber is 101L, and its temperature range is -20oC∼+150oC. LRHS-225C-LJS means the volume is 225L and the temeprature range is -60oC∼+150oC
