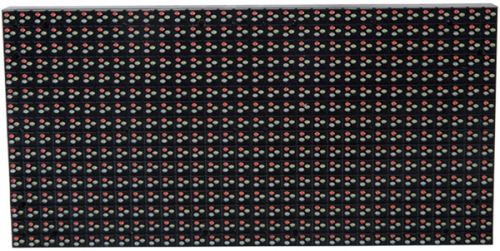

Contact SupplierWe are offering programmable led p10 outdoor led module display.
Pixel pitch: 10mm
pixel configuration: 1r1g1b
led encapsulation: dip346
physical density: 10000dot㎡
panel size: 320mm×160mm
display resolution: w32*h16
viewing angle: h120°v60°
option distance: ≥10m
driving method: constant current 14scan
driving device: led special driving device
brightness: ≥6500cd㎡(can be 8000cd㎡)
brightness adjustment: 256 scale or automatical adjustment
refresh frrequency: ≥300hz
frame frequency: ≥60hz
input power: ac110v220v
average power consumption: 550w㎡
maximum power consumption: 1100w㎡
mean free error time: 1000hours
life span: 100, 000hours
control system : linsn led control system
control method : synchronization control
box size: 960mm×960mm×80mm
standard box: 960mm×960mm×170mm
protection: front ip65,back ip43
storage temperature: -40℃~ +85℃
operating temperature: -10℃~ +50℃
working humidity: ≤10~90%.
