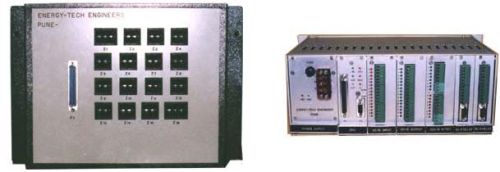

Programmable Logic Controller

configuration

no of inputs :

64 maximum (24vdc optically isolated)

no of outputs :

48 maximum (24vdc optically isolated pnp type)

no of analog channels :

4 channels per slot (± 10v dc)

no of thumbwheel inputs :

80 maximum (bcd)

instruction set

bit instructions :

no , nc , series , parallel, rising edge, falling edge, jump, master reset, coil, set, reset, flip-flop

special functions:

timers :

on delay , off delay, 0.01 , 0.1, 1 sec. Programmable

monoshots :

retrigerable 0.01, 0.1, 1 sec timebase

counters :

up, down

comparison :

< , > , , =

arithmetic :

+, - , x , /

conversion :

bcdbinaryasciihex

word type :

incr, decr, set, reset, move

logical word :

and, or, xor, neg
