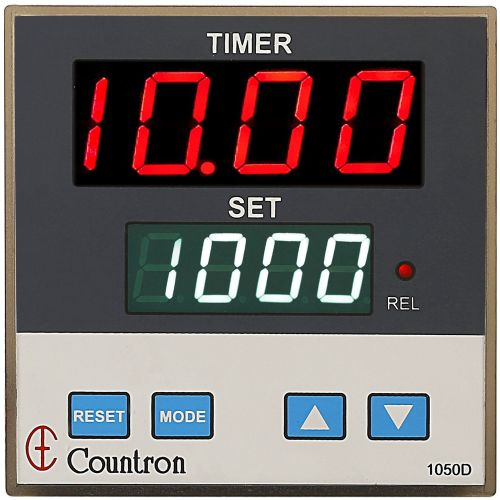

Countronics Programmable Timer

MICROPROCESSOR BASED TIMER
Model 1050D

Features:

 6 different timing ranges of 99.99sec, 999.9sec, 9999sec,99Mins59Secs, 9999Mins, 99Hrs59Mins

 Press to start/Power On start/Cyclic modes settable

 Delayed On/Off programmable by user from front panel

 Up/Down time counting user settable

 User settable starting On/Off time for cyclic mode

 Number of cycles settable for cyclic mode

 Non-volatile memory to save configuration and timing

 Configuration lockable by Password

 Front Reset/Start switch with parallel terminals at rear

 Aesthetically designed panel with membrane switches

Specifications:

 Display : 4 Digit 0.8” Red 7 segment LED display for Time
                  4 Digit 0.56” Red 7 segment LED display for Set Time
                  Red LED to indicate current status of Relay On/Off

 Modes : User settable from front panel
                o Power On start
                o Press to start (with battery backup selection using EEPROM)
                o Cyclic action

 Number of Cycles : 1-199 cycles settable for cyclic mode after which the timer stops Setting number of cycles to Zero disables number of cycles setting

 Reset/Start : Front Reset/Start switch with parallel terminals at rear to connect additional switch, if required.

 Relay logic : Settable delayed On/Off, 5 Amps/220V AC Dual Relay Contact outputs

 Timing direction : Up/Down time counting user settable

 Memory : Non-volatile EEPROM to save settings
