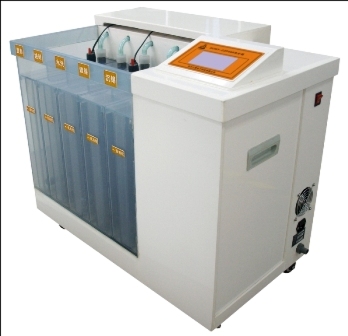

Protection Laminator

We are offering protection laminator
1. usage: to achieve rapid pcb productions such as photographic plate imaging, etching, plated through hole, helping welding and preventing oxidation;
2. product features: the process slots produced by transparent pvc material, heat resistance and anticorrosive, convenient for observing each technological process;
3. process functions: imaging, etching, plated through hole, helping welding and preventing oxidation;
4. process slot configuration: every slot equipped with automatic stainless steel/titanium quality heating tube of constant temperature control(non-glass material, putting an end to the safety accidents like glass heated explosion) and self-contained liquid convection device;
5. process characteristics: all liquid of process slot is environmental protection liquid, ensuring cleanness, no pollution and no bad smell of the environment;
6. the liquid and chemical raw materials pass the authentication of the national environmental authentication institution, including sgs report and cma report; the waste water and gas emissions pass the emissions standards of the cma authority environmental authentication, which can be directly discharged;
7. control system: high-performance arm embedded processor + embedded operating system, human-computer interface: big screen color lcd screen + touch screen;
8. processing dimension: 220mm×320mm;
9. processing accuracy of circuit board: 0.1mm (4mil);
10. through hole precision: 0.3mm;
11. heating tube: full sealed waterproof glass heating tube 300w/stick×3sticks;
12. optional configuration: ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. Through the wireless or local area network and the internet, seamless connection with network management system and software, mating pcb network management software, providing long-term free upgrades service;
13. input power: ac220v/50hz 1000w;
14. overall dimension: 750mm×440mm×660mm;
15. net weight: 28kg.
