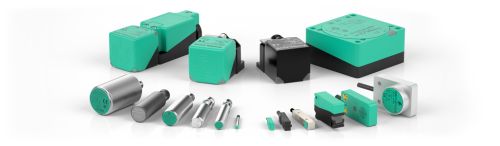

Proximity Sensors

Proximity Sensors
Ask an Expert
Group Overview
Group Literature
Help
Inductive Sensors
Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets. Our experience, flexibility and customer focus continues to allow us to offer custom designed solutions for the most unique and demanding applications.
Standard Inductive Sensor Product features:
Smooth or threaded stainless housings
Polarity reversal and short-circuit protected
LED status indication
Connection styles include M8, M12 or terminal connection models
Models with PVC, PUR or silicon cable
Outputs in 2-, 3-, 4-wire DC, AC, NAMUR, and AS-Interface versions
Application Specific Inductive Sensor features:
Analog output models with 4-20 mA output signal
Integrated speed monitor with up to 100 Hz operation
Pressure resistant cylinder sensors for up to 500 bar
Sensors approved for gas and dust Ex zones
Models with stainless steel sensing face
Protective class of up to IP68 IP69k (submersible high pressure water jet resistant)
Weld resistant designs with PTFE-coated surface
Reduction factor of 1, all metals sensed at same distance
Exclusive ferrous and non-ferrous detection models
Safety function sensors
Extended temperature range: -40 °C up to +250 °C
Capacitive Sensors
Capacitive sensors can be used to detect metal objects as well as nearly all other materials. These sensors are often used in applications including level, flow control for detection of liquids, grains and powders.
Standard Capacitive Sensor Product features:
12, 18 and 30 mm cylindrical styles of stainless steel or plastic housings
5mm thin rectangular and long range 80 mm x 80 mm x 40 mm styles
Sensor outputs of 3-wire DC and NAMUR output types
Models with hazardous area approvals
Magnetic Field Sensors
Our magnetic field sensor selection consists of the M12 housing style for traditional magnetic detection applications. Also offered is a non-contact, piston detection sensor for use with steel hydraulic cylinders. These magnetic sensors offer reliable piston magnet detection and are easily mounted, without the need for mounting slots or holes in the cylinder.
