PSA Oxygen Plants for Industrial

₹ 1 Lakh - ₹ 50 Lakh / piece

Automatic GradeAutomatic
Driven TypeElectric
Type Of CompressorSCREW
Purity93%
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location India,

Company Information

4.0/5

Member Since 3 Years
Nature of Business Manufacturer
GST No. 07AATFG9932E1ZY

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

No. of Air Receiver1
No. of Storage Tank / Buffer Tank1
Air Compressor (kW)AS PER PLANT CAPACITY
Type of DryerREF
Space Required (L*B*H)AS PER PLANT CAPACITY
Flow Rate(LPM)/(Nm3/hr)AS PER PLANT CAPACITY
Country of Origin440V
Purity93%
CertificationISO 9001:2008
PowerAS PER PLANT CAPACITY
Automatic GradeAutomatic
Total Carbohydrate1year
ApplicationIndustrial
Brand NameKaspo
Driven TypeElectric
Type Of CompressorSCREW
DesignASME SEC VIII
CapacityAS PER REQUIREMENT
Number Of FlowerPsa Oxygen Gas Plant
AvailabilityAS PER PLANT CAPACITY
MountingFLOOR MOUNTING
After-Sales Service ProvidedYES
Operating Pressure7 BAR
Technology UsedPSA
Filtration Stages4
Purity Of Oxygen93

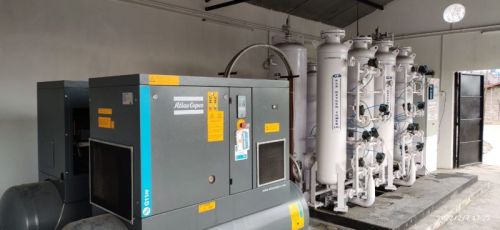

PSA Oxygen Gas Plants separates oxygen from compressed air utilizing pressure swing adsorption technology. Compressed Air, which consists of approximately 21% oxygen and 78% nitrogen, is passed through a bed of zeolite molecular sieve. The sieve preferentially adsorbs N2 and moisture allowing the O2 to pass through as a product gas at pressure. While one of the towers is in the adsorption phase the other tower is regenerated by de-pressurizing, at which time the sieve releases the adsorbed gases to the atmosphere, and the cycle is then repeated. Before feeding the air to the PSA tower refrigerated type air dryer and set of filters are installed to cool the air and remove moisture and dust particles.
