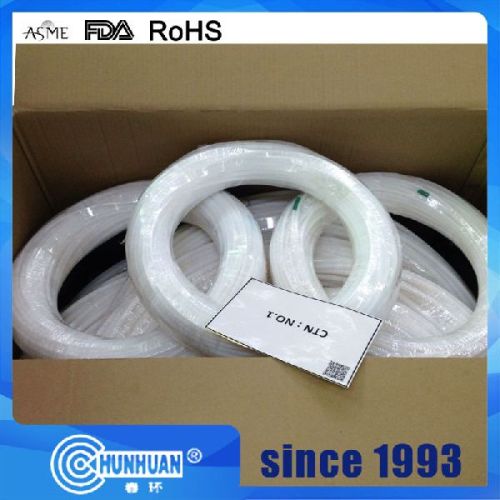

PTFE Extruded Pressed Molded Tubing Pipe

PTFE extruded pressed molded tubing pipe Introduction PTFE pipe can be delivered in various diameters and lengths. Up to diameter 160mm we can supply standard extruded length of 1000, 2000 and 3000mm.Larger diameter up to approx 3000mm will be pressed. Maximum length depends on the diameter and ranges from 100mm to 300mm. By means of Isostatic pressing we can reach the closest diameter near the final required dimension. Due to the flexibility of the press molds we are able to shape the product close to the end product.This can result in significant material saving.   Specification   OD(mm) Wall Thickness(mm) Length(mm) Paste Extruded Tube 0.5~25 0.1~2.5 According to customer's request Plug Extruded Tube 25~250 1.5~8 According to customer's request Molded Tube 25~2000 5~500 100~300   Main Properties Item ASTM Data  Unit Mechanical Properties Density D792 2.1~ 2.2 gm3 Tensile strength D638 ≥25  about 25 ~ 45 MPa Elongation at break D638 ≥150 about 200~ 350 % Compression strength D695 24 MPa ShoreD Hardness D636 50-60 - Friction coefficient    on steel 0.01 - Thermal Properties Working Temp   -180 ~ 260 °C Melting point   330 °C Produce Max. Temp   390 °C Fire Resistance UL94 V-0   Brittle point temperature   -268 °C Electrical properties
