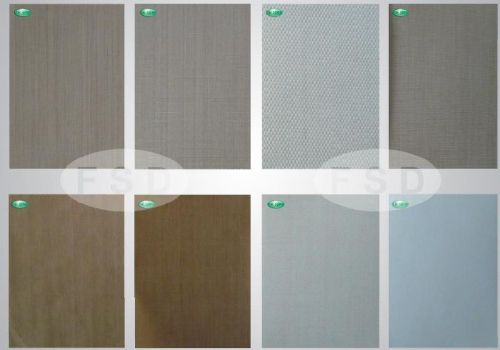

PTFE Fiberglass Fabric, Packaging Type : white

Specifications
Teflon Coated Fiberglass Fabric
fiberglass coated with PTFE, high temperature resistant, non stick and chemical resistant.
Teflon Coated Fiberglass Fabric
Features:
1) Dimensional stability, high intensity
2) Working temperature: -70 - 260°C
3) Low coefficient of friction and dielectric constant
4) Anti-aging, non-flammable, adherence resistance
5) Can resist most chemicals, acids, alkalis and salt
6) Thickness available: 0.08 - 1.00mm
7) Colors: brown, black
Applications:
1) High temperature resistance, adherence resistance,
lining and wrapping lining materials and conveyer belts
2) Wrapping for plastic seaming
3) Insulating wrapping and separating layer
Item No. Color Thickness
(mm) Width
(mm) Weight (gM2) Tensile Strength
(Ncm) Temperature (°C)
Warp Weft
9008AJ Brown 0.076 1250 160 130 120 -70~260
9008BJ Black 0.076 1250 160 130 120 -70~260
9008Y Black 0.08 1250 170 130 120 -70~260
9013AJ Brown 0.127 1250 255 220 190 -70~260
9013BJ Black 0.127 1250 255 220 190 -70~260
9013Y Black 0.13 1250 260 220 190 -70~260
9018AJ Brown 0.18 1250 380 330 250 -70~260
9018BJ Black 0.18 1250 415 330 250 -70~260
9025AJ Brown 0.25 1250 490 410 330 -70~260
9025BJ Black 0.25 1250 510 410 330 -70~260
9025AK Brown 0.23 2600 480 410 330 -70~260
9025BK Black 0.23 2600 480 410 330 -70~260
9030AJ Brown 0.30 2600 630 560 445 -70~260
9030BJ Black 0.30 2600 630 560 445 -70~260
9035AJ Brown 0.34 1250 660 560 445 -70~260
9035BJ Black 0.34 1250 680 560 445 -70~260
9036AJ White 0.36 2950 780 820 500 -70~260
9036BJ Black 0.36 2950 820 820 500 -70~260
9060AJ White 0.60 2950 1150 1080 750 -70~260
9090AJ Brown 0.90 2950 1700 1500 1250 -70~260
9090BJ Black 0.90 2950 1700 1500 1250 -70~260
