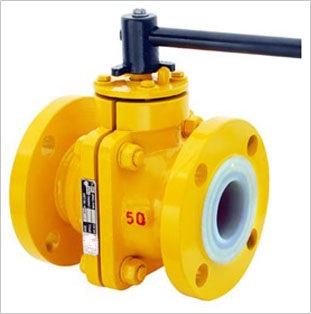

PTFE Lined Ball Valve

Nivz Valves & Automation manufacturer and exporter in india of PTFE Lined Ball Valves for corrosion & acidic application. Nivz PTFE/FEP/PFA Teflon® lined valves are available from 1”(25NB) to 6”(150NB) We also supply PTFE Lined Ball Valve with Motorized Electrical Actuator Operated or Pneumatic Actuator Operated quarter turn valves.,

Nivz PTFE Lined floating ball Ball Valves are two piece design construction with integral stem with ball. Wide range of Body Material selection available like Cast Iron, S.G. Iron, Ductile Iron, Cast Carbon Steel, Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon® lining. PTFE Lined Ball Valve design short pattern face to face dimension is in as per ANSI B16.10 and ANSI B16.5, 150 Class.

Application

• Acid & Chemicals
• Corrosive Liquids and Gases
• Hazardous Liquids and Gases
• Dry Materials
• Food / Pharmaceutical
• Viscous Liquids
• Fibrous Slurries

Features of PTFE/FEP/PFA Lined 2 Piece Design Ball Valve

• Ball with Integral Stem design construction
• Valve Design Standard confirms to BS EN ISO 17292/BS531/ASME B 16.34
• Face to Face as per ANSI B 16.10
• Flange Drilling as per ANSI B 16.5/BS 10 Table D or E
• Manufacturing Size Range 1" to 6"
• Fully Body + Ball Lined with PTFE/FEP/PFA/Teflon®
• Body Construction in 2 Piece Construction
• Minimcum Cavity Body and Full Bore Design
• Low Operating Toruque
• Zero Leakage
• MOC option WCB/Ductile Iron/CF8/CF8M/CF3/CF3M
