SIZE RANGE: 1” – 24”
MATERIAL OF CONSTRUCTION: Lined elbows are manufactured using Carbon Steel material as per A234 WPB schedule 40 for sizes 1” to 12”
and sch 20 for 14" to 24".
Material Test Certificates (MTC) can be supplied along with heat numbers on demands.
Flange material is as per IS 2062 Gr. B and dimensions are as per ANSI B 16.5 ASA 150#.
We manufacture standard 45° and 90° elbows which are always in stock with us and can also manufacture special elbows as per customer's requirements.
LINING MATERIAL: PTFE (POLY TETRAFLUORO ETHYLENE) / PP (POLY PROPELENE) / HDPE (HIGH DENSITY POLYETHYLENE) /
FEP (FLUORINATED ETHYLENE PROPYLENE) / PFA (PER FLUOROALKOXY) / PVDF (POLYVINYLIDINE FLUORIDE)

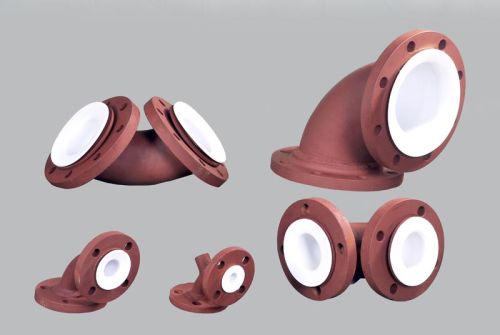

Short Description: CS - PP / PTFE / FEP / PFA / PVDF / HDPE LINED ELBOW
Features & Specifications: PAINTING RED OXIDE PRIMER
Dimensional details are as per below table
TABLE FOR 90° ELBOW | |||
SIZE | Centre Height "F" | Approx Wgt. | |
NB | INCH | (mm) | (Kg) |
25 | 1" | 89 | 2.1 |
40 | 1.5" | 102 | 3.5 |
50 | 2" | 114 | 6 |
80 | 3" | 140 | 11.5 |
100 | 4" | 165 | 16 |
150 | 6" | 203 | 25 |
200 | 8" | 229 | 48 |
250 | 10" | 279 | 105 |
300 | 12" | 305 | 179 |
350 | 14" | 356 | 218.6 |
400 | 16" | 381 | 275 |
TABLE FOR 45° ELBOW | |||
SIZE | Centre Height "F" | Approx Wgt. | |
NB | INCH | (mm) | (Kg) |
25 | 1" | 44 | 3 |
40 | 1.5" | 57 | 6 |
50 | 2" | 64 | 9 |
80 | 3" | 76 | 15 |
100 | 4" | 102 | 20 |
150 | 6" | 127 | 33 |
200 | 8" | 140 | 54 |
250 | 10" | 165 | 75 |
300 | 12" | 190 | 110 |
350 | 14" | 190 | 120 |
400 | 16" | 203 | 150 |
450 | 18" | 216 | 175 |
600 | 24" | 279 | 295 |
