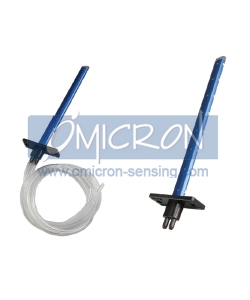

Contact SupplierThe Pitot Tube is a differential pressure producer suitable for air flow measurement. It includes multiple sensing points to measure total and static pressures. It is easy to install and cost effective. It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no
moving parts or sharp edges to wear, so long term accuracy can be maintained.It contains a rubber cap,Plastic base and two 1 meters length air tube.
Â
Special Features :Air Flow Measurement | |
Low Installation Costs | |
Long Term Accuracy | |
Minimal Unrecovered Pressure Loss | |
Mass Flow Measurement |
Â
Probe | ||
Material | : Aluminium alloy | |
Dimensions | : 7.8 x 19.5mm (0.3”x 0.8”) | |
Tubing inner diameter | : 3.8mm | |
Rubber cap | ||
Material | : Rubber | |
Connections | : To suit 4mm (0.16”) i/d PVC air tubing | |
Duct flange | ||
Material | : ABS | |
Dimensions | : 30 x 75mm (1.2”X 3”) | |
Air tube | ||
Material | : PU | |
Rating | : inside and out side diameter 4 x 6mm | |
Length | : 1m |
