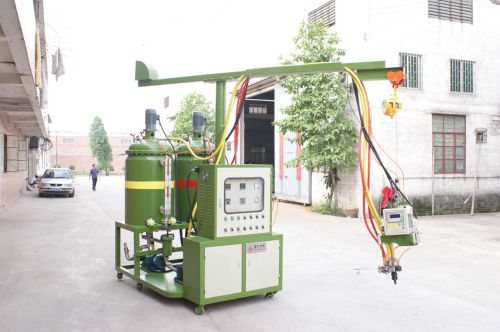

PU Foaming Machine

We are offering pu foaming machine.
Product’s technical parameters
category main technical parameters describe
two material tanks foaming machine equipment model lz-803 two material tanks foaming machine
power supply all power of the machine 12kw、4*380v60hz
the type of applicable foam soft foam,high rebound sponge,etc.
flux of inject 80g-250gs (attention：the flux could be configured)
the press of infect 0.1mpa-3.99mpa
the mix proportion 100:35-65
viscosity(22°) poly( polyethylene )500-2000mpas
viscosity(22°) iso( multi-isocyanate )500-2000mpas
time of injecting 0.01-9.99s( precision 0.01s)
precision of injection 0.2100
process of injecting manual inject by plc programmed
pneumatic pressure 0.6-0.8mpa
area wide:1.5m; high:3.2m; long:2.1m
weight of the machine 1．2ton
pouring nozzle with collision impact needle, never wear, never plug
plc programmed computer（english demonstration）
it could control 200 patterns’ capacity of injecting at the same time and could wash the gas-injecting automatically
heat system
it can automatic control temperature
3p refrigerator(1 set) refrigerating output:8300kcaih
