PU Sandwich Panel Production Machine

Pu sandwich panel production machine
description of pu sandwich panel production machine

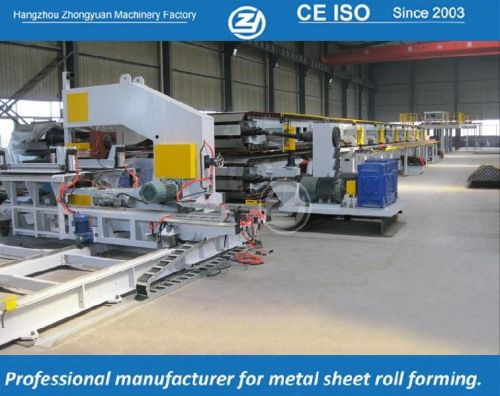

our pu sandwich panel production line is one line that integrates advanced mechanical, chemical, electrical, hydraulic, and pneumatic technologies.
Technical parameters
sandwich panel spec
min. Cutting length 3 meters
max. Stacking length 15m
panel width 1000mm (can be designed as per client’s requirment)
panel thickness mini thickness 30mm (corrugated sandwich panel)
50mm (wall panel)
max. Thickness 150mm(exclude corrugated sandwich panel)
steel sheet spec
thickness 0.4-0.7mm color steel sheet
width 1250mm (can be designed as per client’s requirement)
max. Coil weight 10 tons
inner dia. Of coil 508mm
whole line spec
working speed about 3-7mmin (adjustable)
total length about 105m
working height 1200mm (height of panel coming out)
pressure for foaming 150-200 bar
double belt conveyor 23m
control mode mitsubishi plc and converter
total power about 100kw (as per final designing)
power required 380v3phase50hz or as per customer's requirement.
Air pressure 0.7mpa (for buyer to prepare)
product application
due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storage, and mobile buildings.
In order to satisfy various customer requirements, we design and manufacture pu sandwich panel production machine in different specs, models and configurations.
