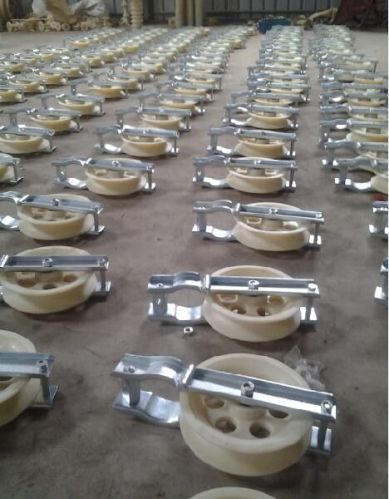

Pulling Rope Single Roller Guide Cable Pulley

Single Roller Guide Cable Pulley For Pulling Rope Application Earth Wire Cable Hanging Pulleys  is used to release lightning shield line or cross steel strand. Features Safe and Reliable;  Light in weight; Stringing Equipment Earth Wire Stringing Block1.Rated load: 5~20kN2.Weight: 1.5~9.5KG3.Max steel wire: 35~1503.Wheel material: Cast Iron NyonTechnical Details: Product No Model Suitable conductor ACSR(mm2) Rated load (KN) Weight (kg) Remark 10089 XTDA-120×30 25-70 5 1.5 Alum sheave 10090 XTDA-160×40 95-120 10 2.5 10091 XTDA-200×40 150-240 15 4 10092 XTDA-200×60 150-240 15 4.6 10093 XTDA-250×40 150-240 20 4.6 10094 XTDA-250×60 300-400 20 6 10095 XTDA-270×60 300-400 20 7 10096 XTDA-320×60 300-400 20 9.5 10097 XTDA-400×80 400-500 20 15 10098 XTDN-120×30 25-70 5 1.5 Nylon sheave 10099 XTDN-160×40 95-120 10 2.5 10100 XTDN-200×40 150-240 15 3.6 10111 XTDN-200×60 150-240 15 4 10112 XTDN-250×40 150-240 20 4 10113 XTDN-250×60 300-400 20 4.5 10114 XTDN-270×60 300-400 20 5.6 10115 XTDN-320×60 300-400 20 6.7 10116 XTDN-400×80 400-500 20 13
