Pulp Beating Freeness Tester

We are offering pulp beating freeness tester.
Introduction

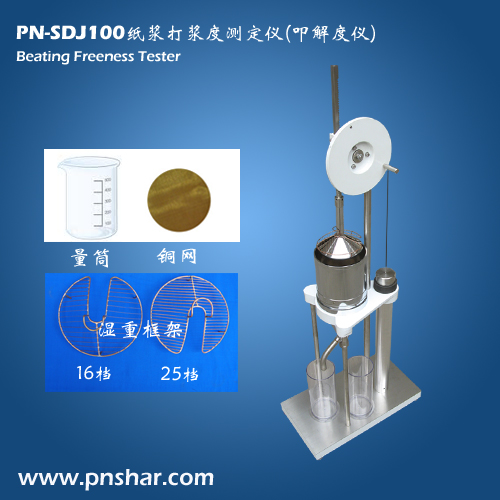

pn-sdj100 beating freeness tester is designed to determine the rate of drainage of a dilute pulp suspension and express it in terms of the schopper-riegler(sr) value. The tester obeys the related prescriptions mentioned in iso 5267/1 and gb3332.
the schopper-riegler test is designed to provide a measure of the rate at which a dilute suspension of pulp may be dewatered. It has been shown that the drainability is related to the surface conditions and swelling of the fibre, and constitutes a useful index of the amount of mechanical treatment to which the pulp has been subjected.
applications
pulp
standards
meets iso 5267/1, gb/t 3332 and qb/t 1054
specifications
1.measuring range: 1~~100ã�â°sr
2.the division value of the reading measuring cylinder :1ã�â°sr
3.draining time for the outgateã¯â¼ï¿½ã¯â¼ï¿½149ã�â±1ã¯â¼ï¿½s
4.residual volume: (7.5~~8)ml
features
1.the phospher bronze wire is non-corrosive for low maintenance
2.easy to use and clean
3ã£ï¿½ï¿½stainless steel
4ã£ï¿½ï¿½robust equipment
