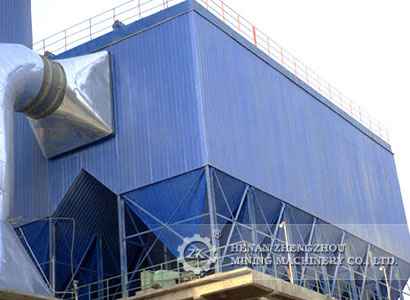

Pulse Jet Bag Filter

Pulse jet bag filter incorporates the advantages of the several kinds of bag filters and is equipped with high performance pulse valve. This kind of bag filter can be used in building material, metallurgy, chemical and refractory industries, especially the crushing, packing, clinker cooling and grinding workshops in cement production. It is also suitable for dust collection of coal grinding after some modification.
Suitable for application in:building material, metallurgy, chemical and refractory industries.
Feature and advantage：
1.new and advanced dust removing concept. No air pipe. Pulse valve is assembled at the side the chamber shell or top. No need to disassemble and assemble the air pipe when replacing the bags.
2.high performance pulse is applied to replace many smaller pulse to reduce the maintenance as much as possible.
3.multi-chamber and off-line dust removing. Long life of filter bag.
4.available for high density dust containing air collection, for example, o-sepa separator, the dust content of which will reach 1000gnm3.
5.air tank will reduce the pressure decrease caused by equipment.
pulse jet bag filter consists of upper chamber, middle chamber, dust hopper, air inlet and air outlet, as well as support, cage, handrail, air blow system, control system and discharge device.
1. The upper chamber is divided into several rooms, each of which is equipped with a valve to enable off-line dust removing.
2. The middle chamber is divided into several rooms to avoid mutual influence during dust removing.
