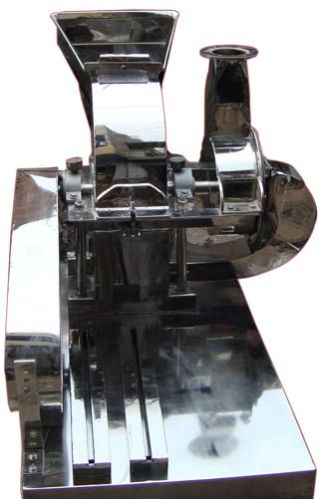

IMPACT Pulverizer Machine :
Since our inception, we are fully involved in manufacturing and supplying high quality YPM Impact Pulverizer. These equipments are precisely designed to install in pulverizing machine. In accordance with set industry norms, these equipments are manufactured by utilizing optimum quality raw materials. Moreover, this YPM Impact Pulverizer Machine is highly acclaimed due to their perfect finish and easy installation.
We manufacture, supply and export different models of impact pulverizer machine. All its wide range is made using superior quality raw materials. It is featured with very smart functions and is dimensionally very much accurate. This machine will offer you maximum output with minimum power consumption. It is very easy to clean, operate and it has multipurpose use as you can grind food items, spices, chemicals etc.
Features :
Cyclone Pulverizer Machine :
he unit is to reduce the size of the hearbals; medicine powder etc.All contact part of the pulvrizer is made of the Mild Steel or Stainless Steel. The machine is driven by motor of three Phases, With Starter etc. The unit is provided with provision for affixing mesh of different size as per requirements and nature of materials to be provided The pulvrizer shall reduce the Powder size up to 100# mesh.
Features :
| Model | Size of Grinding Chamber | Motor required | Material Output |
|---|---|---|---|
| YPM-IP-3 HP | 10” x 4” | 3 H.P | 5 kg – 10 kg |
| YPM-IP-5 HP | 10” x 6” | 5 H.P | 25 kg - 40 kg |
| YPM-IP-10 HP | 12” x 9” | 7.5 / 10 H.P. | 60 kg - 80 kg |
| YPM-IP-15 HP | 16” x 9” | 15 H.P. | Up to 150 kg |
| YPM-IP-20 HP | 20” x 9” | 20 H.P. | Up to 250 kg |
| Model | Size of Grinding Chamber | Motor required | Material Output |
|---|---|---|---|
| YPM-HP-3 HP | 10” x 4” | 3 H.P | 10 kg – 25 kg |
| YPM-HP-5 HP | 10” x 6” | 5 H.P | 40 kg - 60 kg |
| YPM-HP-10 HP | 12” x 9” | 7.5 / 10 H.P. | Up to 100 kg |
| YPM-HP-15 HP | 16” x 9” | 15 H.P. | Up to 200 kg |
| YPM-HP-20 HP | 20” x 9” | 20 H.P. | Up to 300 kg |
| Model | Size of Grinding Chamber | Motor required | Material Output |
|---|---|---|---|
| YPM-HP-3 HP | 10” x 4” | 3 H.P | 10 kg – 25 kg |
| YPM-HP-5 HP | 10” x 6” | 5 H.P | 40 kg - 60 kg |
| YPM-HP-10 HP | 12” x 9” | 7.5 / 10 H.P. | Up to 100 kg |
| YPM-HP-15 HP | 16” x 9” | 15 H.P. | Up to 200 kg |
| YPM-HP-20 HP | 20” x 9” | 20 H.P. | Up to 300 kg |
