Pulverizers

NEUE HERBOLD is a German manufacturer of size reduction machines recycling machines for plastic and other waster materials (glass-wool, mineral-wool, lime-sand-stones etc). Our range of products: Granulators, Grinders, Pulverizers, Fine-Grinders, Pipe-Granulators, Profile-Granulators, Shredder, etc.
For special application projects we can provide individual Taylor made machines and systems designed specifically for the customer's needs. Included in this vast equipment spectrum are machines (hammer mills, bale breaker, guillotines) to recycle computer hardware and software, insulation material etc.
Our Products Type:
1. Plastic Machinery,
2. Recycling Equipment,
3. Plastic Recycling Machinery.

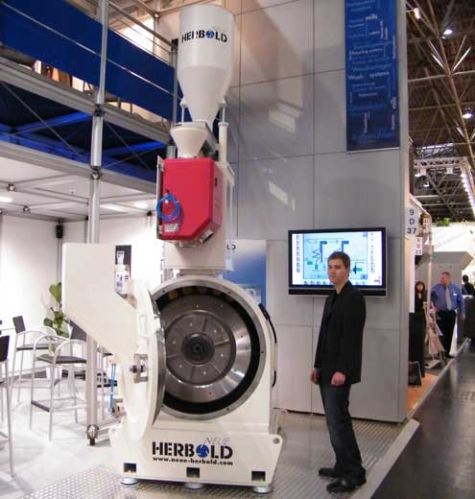

Plastic Machinery: ZM Series Plastic Pulverizer Fine Grinders for Recycling System
Applications:
Neue Herbold ZM series pulverizers (pulverisers) are designed for the pulverizing of mid-hard, brittle to high impact plastics that require the final material to be in powder form. Typical applications are PE, PVC, PC and other various types of plastics. The required pulverizer (pulverisers) input material must be in a granulate form with a maximum size of 6-8 mm (14-516 in.).
Design:
The ZM series pulverizer (pulverisers) is a extremely high out put unit can be supplied with automatic temperature control. The material to be pulverized is vibro feeder fed into fixed and high speed rotating pulverizer (pulverisers) discs. In conjunction with a integrated inner disc that material is centrifically forced through the pulverizer (pulverisers) discs to the outer chamber for discharge with a down stream material transport system. Neue Herbold ZM series pulverizers (pulverisers) operate without a screening machine. The specific final powder size is dependent on the teeth configuration and the adjustable gap between the pulverizer (pulverisers) discs. In the event that the application requires a maximum particle size, a screening machine can be easily integrated into the system.
Advantages:
1. Extremely high through put rates.
2. Minimal thermal material stress.
3. Longer disc life and reduced re-sharpening costs.
4. Quick and easy disc adjustment and replacement.
5. Cost effective operation.
Specifications:
Place of Origin Germany
Brand Name NEUE HERBOLD
Model Number ZM Series
Type Pulverizers Fine Grinders
Typical Applications PE, PVC, PC and other various Types of Plastics
Maximum input-Size 6-8 mm (14-516 in.)
Usage Recycling System
Feature High out put unit, Automatic Temperature Control, Longer disc Life, etc
available types of pulverizers:
Type
Pulverizer (pulverisers) type ZM 300 (diameter of grindingcutting disc: 300 mm)
Pulverizer (pulverisers) type ZM 500 (diameter of grindingcutting disc: 500 mm)
Pulverizer (pulverisers) type ZM 800 (diameter of grindingcutting disc: 800 mm)
