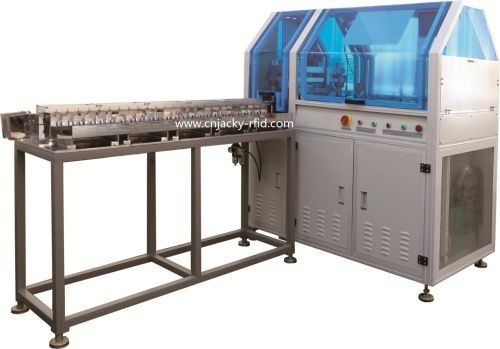

Punching machine

We are offering Punching Machine,
Function and Application Introduction
Can help you to save about 12 workers and increase 50% your production capacity. This machine is the specialized equipment for handling a complex printed sheet that printed several different designs or combinations of card. This machine provides cutting, collating and separating the different design cards automatically. Such as a sheet printed 5x5 up (also 3x8, 6x8.etc) ups format card sheet 25 (24, 48 pcs) different card designs will be cut and separated to a 5 or 25 groups by the 25 (24, 48) chambers card collating system automatically, operator doesn’t need to separate or group card again, in order to increase the production rate, save labor cost, reduce scrape and scrap.
Of course we can tailor-make and design the automatic collecting system according your special request, such as 3x8 ups, 6x8 ups format of card sheet, etc.
Technical parameter:
Model CNJ-5A -25PLC Punching machine
Power AC 380V 5060 HZ 5.5KW
Air pressure 6kg cm square
Layout 5X5
Applicable materials PVC、ABS、PET、mixed material of PVC and ABS paper cards
Production Capacity 18000 cardshour
Card separation 5,25
Control method PLC program + Servo system
Operator 1 person
Weight 1200kg Approx
Overall dimension L3000 x W1240 x H 1750mm
