Punching machine

We are offering punching machine,

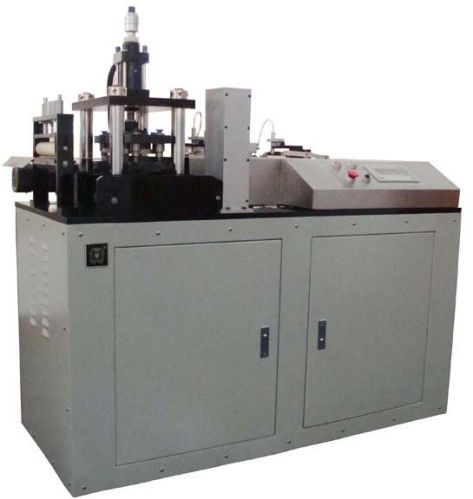

cnj-2aplc high speed automatic plc punch machine,it adopts plc control system.feeding system is controlled by omron servomotor and imported high precision ball screw as well as linear guide,balanced move and precision moving distance(positioning accuracy is less than 0.10mm).it adopts professional ultrasensitive opto-electrical recognizer to read the register marks to make the position reliable and precise,also low noise�large flow made in taiwan hydraulic pump.the die of hydraulic cylinder is dieing smoothly and steady,also low noise.the mould is made by imported die steel.the software function is strong and insure punch precision even in the situation of material distortion or mechanism worn.the punch capacity is 30% higher than the similar products.it adopts two moulds to punch,so it is suitable for the medium range card making factories.
advantage:
1,plc controlled mmi(man-machine interface)
2,reliable and precise position by opto-electrical recognizer to read the register marks in the cutting sheet.
3,adopt the imported die steel to make puncher mould to cut the high-quality and smooth edge cards.
technical parameter:
model cnj-2aplc
suitable for 0.3~1.0mm pvc and other plastic materials
punch layout 2ã�5,a4 size
the number of punches 2
control method plc control
max punch strength 0~5000 kgs adjustable
cylinder stroke 18mm
hydraulic oil tank volume 120liter
air source 0.6 mpa
air consumption 100 lmin
power source ac380v 5060hz
power 4.5kw
production capacity 5000 cardshour
size l1350ã�w600ã�h1300mm
weight 600 kgs
