Punching machine

₹ 90.50 / Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

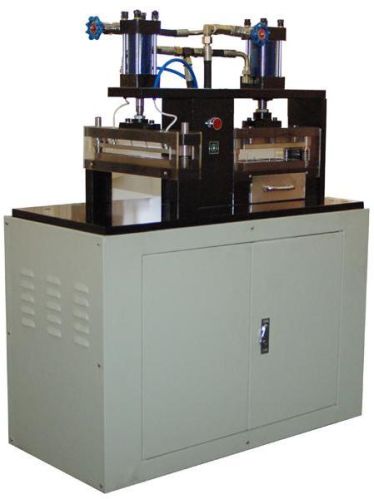

We are offering cnj-hs-2b dual-card punching machine combines slotting and punching. It adopts hydraulic power punching method .it adopts photoelectric eye center location to accurate positioning....

Product Details

We are offering cnj-hs-2b dual-card punching machine combines slotting and punching. It adopts hydraulic power punching method .it adopts photoelectric eye center location to accurate positioning with fast speed. It uses imported good quality mold, which is easy to be
replaced. The machine is for punching a4 size pvc, abs and etc. Punching effect is comparable with automatic high-speed die punch card. Punching is done after making holes without cutting.
Technical parameter:
model cnj-hs-2b punching machine
punching size international credit card standard size 85.7 54mm
card material size 210 mm297 mm
punching thickness 0.3 mm 1.2mm
punching method hydraulic
punching motion constant
voltage 220v
power supply 220v ac 50hz
power 2.2kw
dimension 850 410 1150 mm
g.w 275kg
productivity 3000 cards hour.
