Punching Machines

We are offering punching machines.
Specifications

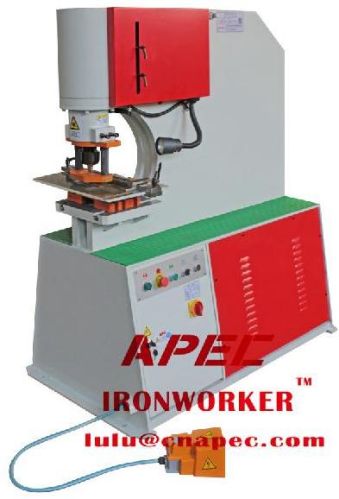

apec hydraulic punching machine
specifications
1. Max. Punching capacity: dia 45mm* thi 35mm 2. Temperature cooling system 3. Ce certificate
hydraulic punching machine
i. Features
*full stroke adjustment.
*low power inching and adjustable stroke.
*large punch table with multi-purpose bolster removable table block for overhang channeljoist flange punching.
*machines with very low maintenance requirements.
*punch adaptors
*swing away punch stripper unit
*easy change punch holder
*universal die bolster
type p-60 p-90 p-120 p-160 p-200 p-250
punch capacity(mm) ñ�25x16 ñ�30x20 ñ�35x25 ñ�40x30 ñ�40x35 ñ�45x40
punch pressure(kn) 600 900 1200 1600 2000 2500
stroke(mm) 80 80 80 80 100 100
number of stoke(timesmin) 8-22 8-22 8-22 8-25 8-25 8-25
motor powre(kw) 4 5.5 7.5 11 15 18.5
throat depth(mm) 300 355 400 550 550 550
net weight(kg) 1600 2000 3200 4200 5000 6200
dimension(mm) l=1500 l=1550 l=1660 l=1700 l=1800 l=1900
w=800 w=900 w=1000 w=1100 w=1200 w=1400
h=1780 h=1930 h=2100 h=2200 h=2300 h=2400
