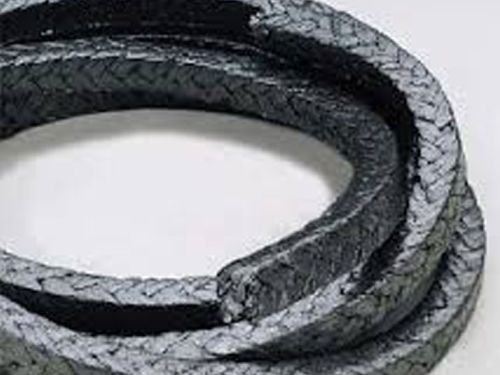

Pure Expanded Graphite Packing With Reinforcement Metallic Wire

Style No: HN-777
Ideal For: Universal packing for High Temperature - Aggressive or Abrasive or Viscous chemicals
Properties:
Good chemical resistance, inert to most media
Low startup friction
High Density
Good Dimensional Stability
Good Heat dissipation properties
Self Lubrication Low coefficient of friction
Suitable to food contact application
Low Shaft wear
No Jamming on shaft, lower shaft erosion
Very High Temperature Resistance
No Heat Buildup, last Resistance to Abrasive Erosion media
Excellent volume stability
Service Conditions:
Temp (°C): -100~650
Pressure (kgcm²): 35P, 150R, 350V
pH Range: 0-14
Speed (ms): 25P, 2R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
Service Medium:
Non Drinking Water
Sea Water
Ash Water
Soiled Water Mud
Paints & Dyes
Adhesives
Petrolium Tar Bitumen
Sewage
Abhrasive Slurry
Paper Pulp
Oils & Greases
Mineral Oil
Agreesive Chemicals
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size
P=Pump, R=Reciprocating, V=Valves
