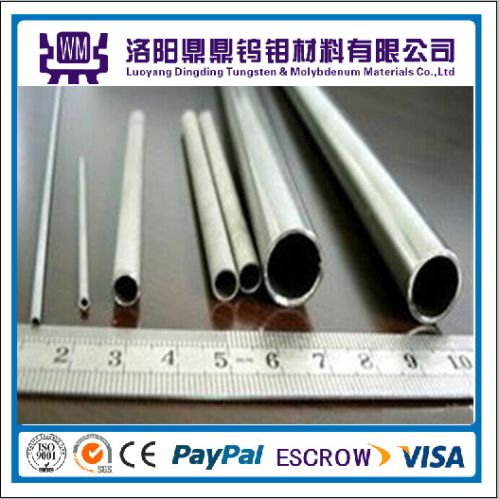

Pure Molybdenum Tubes/Pipes Or Tungsten Tubes/Pipes In Sapphire Crysta

1 name: molybdenum tubespipes
2 appearance: silver grey metal luster
3 purity: mo≥99.95%
4 density: not less than 9.8gcm3
5 supply state: sintering or processing
6 quality standard: gb,astm
7 specifications
density
outer diameters  length  wall thickness
capillary molybdenum tubepipe ≥10.2gcm3 0.2~5.0mm 500mm max 0.1mm min
forged molybdenum tubepipe ≥10.2gcm3
8-150mm ≤1500mm ≥1.0mm
sintered molybdenum tubepipe ≥10.2gcm3
100-500mm ≤1500mm ≥5.0mm
purity   mo>=99.95%
main element content (%)  mo 99.95, al 0.001, ca 0.003, cr 0.005,
cu 0.001, fe 0.005, pb 0.002
grade mo1,jmo2,mo2,tzm
standard:  astm ,gb
condition seamless, rolling, welded, extrusion
finished polished, smooth, logo or images lased on
applications:
- used in components of electron tube,
- glass industry,
- as heaters of high-temperature furnaces,
- as thermocouple retainers,
- as the contact materials in silicon controlled rectifier diodes,
- transistors and thyristors.
- as mounting material for power semiconductor devices.
- as heat sink bases etc
characteristics:
- high melting point, high-strength,
- outstanding thermal conductivity,
- excellent resistance to thermal impact and corrosion
other service
- custom specification & drawing available
- oem service offered
- mill test report send will goods
- third party inspection
