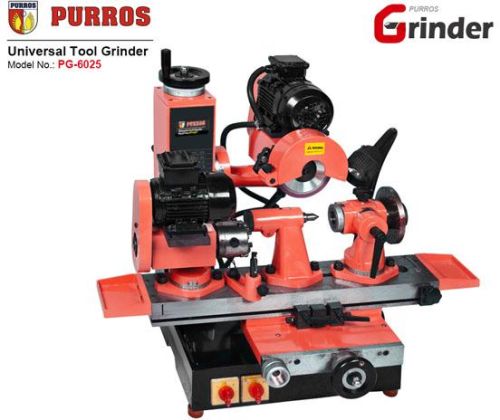

PURROS PG-6025 Universal Tool Grinder Machine

Advantages
grinding scope: inner bore, excircle, cyclinder, groove, taper, end milling cutter, disc milling cutter, lathe tool, square or diamond cutting tool, gear hobber, etc. According to different cutting tool to adjust the grinding wheel.
Two types of guide rails are used for the workbench, which is the high precision linear guide and rolling guide. A balanced workbench is good for operation.
The motor range rotation is in 0-360ã�â°, only to rotate the grinding wheel during grinding the cutting tools of different materials. Synthetically the above advantages, it can increase the safety and reduce the exchange and correction time of grinding wheel, and then increasing the controllability of cutter grinding.
Adopt high toughness fc30 iron to maintain long-term machining accuracy.
specification
the machine is equipped with different types of attachments for grinding lathe tool, 3-flutes milling cutter, gear hobber, and circular scudding knife, etc.
The optional attachment 5oe can be grinded morse 4# taper spiral milling cutter, ball end milling cutter, r-type lathe tool, etc.
The optional attachment 5ok can be grinded morse 4# taper or diameter ranges in �3-�32 of drill bit or pg3-pg32 of tapping head, etc.
The optional attachment 5ok can be grinded morse 4# taper spiral (milling) cutter, etc.
Others optional attachments as 50j and 50b, etc.
Dimension: 730�710�715mm
net weight gross weight: 212kg222kg
optional model: 50e grind spiral milling cutter ball end mill, r type lathe tool, graver and other taper milling cutter.
50k can grind drill bit, screw tap, side mill, round bar and so on.
50d can grind end mill, side mill and so on.
50b tablebox
50j thimble
