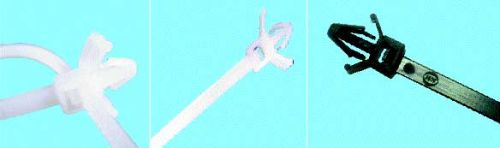

Contact SupplierDesigned with an additional Push Mount Head, these Cable Ties secure cable bunches to a panel or chassis without the need of any fixing tool. This can be done by simply pushing the anchor through a plate with 2.3 mm Thickness and then tying the cables with the tie. Tensioning Wings on the side of the anchor provide a tight, rattle free, and stable installation.
Novoflex Part No. |
Nominal Overall length L (mm) |
Strap width B (mm) |
Thickness (mm) |
Min. Tensile strength (Kg) |
Max. Cable Bundle Dia (mm) |
Push Hole Dia (mm) |
Standard Packing |
CPM-100ES | 100 | 2.5 | 1.20 | 8 | 22 | 4.8 | 100 Nos. |
CPM-100HD | 100 | 4.8 | 1.28 | 22 | 22 | 6.4 | 100 Nos. |
CPM-135ES | 132 | 4.8 | 1.28 | 22 | 28 | 6.3 - 7.0 | 100 Nos. |
CPM-150S | 150 | 3.5 | 1.4 | 9 | 30 | 6.4 | 100 Nos. |
CPM-160 | 160 | 3.5 | 1.2 | 9 | 35 | 4.8 | 100 Nos. |
CPM-200 | 200 | 4.8 | 1.3 | 22 | 48 | 6.8 | 100 Nos. |
